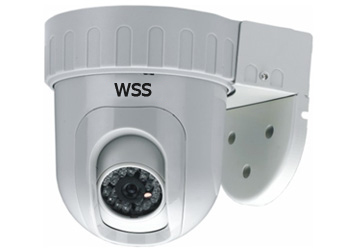

MODEL |
WSS-4804DRIP |
Hardware |
CPU |
32Bit RSIC Embedded Processor |
Operation system |
Built-in Linux operation system |
Video |
Compression format |
MPEG-4 |
Frame rate |
-->30fps (D1) |
Resolution |
D1: 720*576, CIF:352*288, FIELD:720*288, QCIF：176*144 |
Image adjust |
brightness, contrast, chroma, saturation, image quality can be adjusted. |
Delay time |
less than 500 MSEL(0.50 second) in Lan system |
CCD module |
Image sensor |
1/3" SONY |
Horizontal resolution |
480 TVL |
Zooming |
none |
Minimum illumination |
0 Lux（IR red on） |
Signal noise ratio |
>48dB (AGC off) |
Shutter speed |
1/50(1/60) ～ 1/110,000 sec |
Lens |
24pcs |
IR distance |
20-25M |
White balance |
Auto tracking white balance |
Backlight compensation |
Auto backlight compensation |
Infrared light |
24 Infrared leds, Infrared distance: 20m |
Vedio output |
BNC 1.0 Vp-p/75W |
Operation temperature |
-20℃～50℃ |
Power consumption |
DC12V(+/-10%) 350mA |
Audio |
Audio processor |
Built-in audio processor, support sound monitor |
Audio gain |
Auto Audio Gain Control（AGC） |
Network |
Internet interface |
RJ45， 10/100m ethernet network |
Protocol |
TCP/IP、HTTP、ICMP、DHCP、FTP、SMTP、PPPoE and so on |
IP mode |
Dynamic IP address、Static IP address、PPPOE |
Pan/Tilt |
Communication interface and control |
RS485 interface， customer remote control the pan and sensor: Vertical, Horizontal, lens zoom |
Rotation degree |
Pan horizontal rotation：continuous 0°～ 355°，Tilt vertical rotation：0°～ 90° |
Configuration |
Power consumption |
DC12V 1A |
Temperature |
-10~50 degrees centigrade |
Humidity |
95% RH |
Attachment |
Adaptor, Disc, Manual |
Alarm |
Input / Output |
2/2 |
Intelligent Motion detection |
Adjustable image size and quality with two configurable motion detection Windows, setting of clique, alarm input and output can support mobile sensing, videolost, date, time, and event trigger, AVI format export |
Alarm action |
Pre- and Post- Alarm Snapshots ,scheduled recording, manual recording, relay output control the peripheral equipment |
Feature |
System requirement |
Microsoft Win98 SE/ME/2000/XP, Internet Explorer 5.0 or above |
Safety Settings |
Supports the two-level password: administrator authority, user authority |
Center management software |
Remote configuration and control, 1、4、9、16、25、36 monitor pictures in one screen of client software, unconditional monitor pictures of professional software; Fast/slow forward replay and pause, Supports remote-file server, can realize remote playback and download. |
Certification |
CCC FCC ISO |
